12 inch VTC,Workpiece diameter[mm] 550,Workpiece length[mm] 465
MACHINE SPECIFICATIONS
(VTC) 1 TS 1 Turret

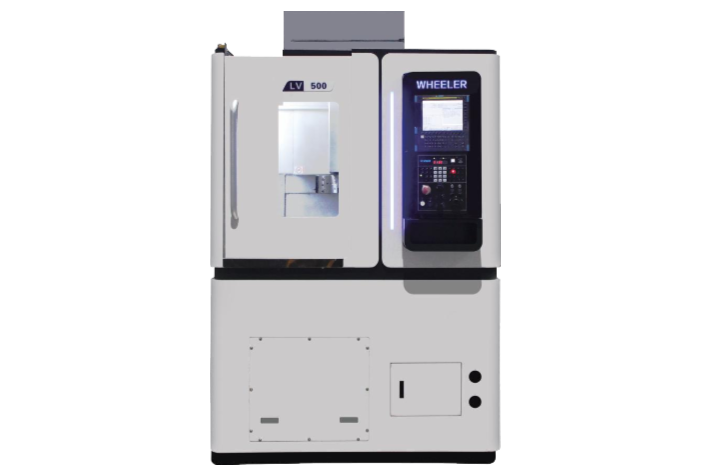

LV500

Product line up - Machine specifications - LV Series - Similar products - Comparison
Characteristics
Hydraulic Motor
TURRET
Model variations
1231

CategoryItemSpecification
CapacitySwing over bed[mm]650
WorkpieceWorkpiece diameter[mm]550
Workpiece length[mm]465
ChuckChuck size(S1)[in]12
Tool post 1(T1)No. of tool stations[ea]8
TravelsStroke X[mm]310
Stroke Z[mm]500
Rapid traverse(X)[m/min]24
Rapid traverse(Z)[m/min]24
TableWorkpiece allowable Load[kg]500
Table Size[mm]D315
D380
CategoryCNC brandFanuc
Siemens
CNC system0i-TF PLUS
OriginMainland China

Turning spindle 1(S1)

Spindle nameS1-1
Turning spindle no. 1 max. speed[r/min]2000
Bearing inner dia.(front)[mm]
Interface(S1)
Turning spindle 1 thru hole dia.[mm]
Output[kW]15！18.5
Torque[Nm]590
Turning spindle 1 transmission

Tool post #1(T1)

Name
Tool holder
Tool shank
Boring bar40
Position8
Index time
Speed
Power
Torque

Photo gallery

MACHINE SPECIFICATIONS
Not responsible for misprints or data errors. Actual product appearance may differ.
